Products > Automatic Continues Band Sealers > FRM 1120 Series

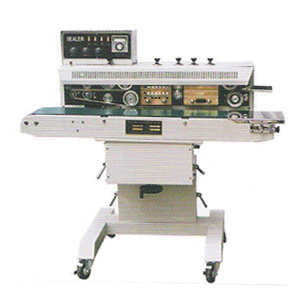

FRM 1120 Series continuous band sealer
Solid-Ink Coding Continuous Band Sealer
The machines adopt electronic constant temperature control system and stepless speed adjusting transmission mechanism; the height of conveyor also can be adjusted. It can seal plastic films of various materials.
The machine adopt solid-ink coding device or color ribbon printing device can print the desired designs simultaneously with sealing, the characters clear and conspicuous. The colors are selectable and uneasy to decay and unchangeable, instant printing and instant dry, with strong adhesion. If necessary, counting device can be fixed to it as well.
|
|
FRM-1120W |
FRM-1120K |
| Voltage (V/Hz)
|
AC 220/50 110/60 |
| Motor Power (W)
|
100 |
| Sealing Power(W)
|
300×2 |
| Printing Heating Power(w)
|
40×2 |
40×2 |
| Speed (m/min)
|
0-10 |
| Sealing Width(mm)
|
8 10 |
| Temperature Range( ℃ )
|
0-300 |
| Printing Type
|
Solid-Ink Roller |
| Distance From Sealing Center to the Conveyor(mm)
|
20-80 |
| Height From Head to Floor (mm)
|
---- |
| Conveyor Size(L×W)(mm)
|
1100×205 |
1400×250 |
| Max. Conveyor Loading for Single Bag(kg)
|
2.5 |
| Overall Conveyor Loading(kg)
|
7.5 |
| Dimension(L×W×H)(mm)
|
1100×610×1030 |
1450×620×1030 |
| Net Weight(kg)
|
85 |
95 |
