Products > Automatic Continues Band Sealers > FRM 1010 Series
FRM 1010 Series
Solid-Ink Coding Continuous Band Sealer
|
|
| FRM-1010Ⅰ |
FRM-1010Ⅱ |
|
 |
| FRM-1010Ⅲ |
FRMC-1010Ⅲ |
| |
|
| |
|
The machines adopt electronic constant temperature control system and stepless speed adjusting transmission mechanism. It can seal plastic films of various materials.
The machine adopt solid-ink coding device can print the desired designs simultaneously with sealing, the characters clear and conspicuous. The colors are selectable and uneasy to decay and unchangeable, instant printing and instant dry, with strong adhesion. It can print R type two lines of No.4 characters (PT18) of three lines of No.5 characters (PT10.5). If necessary, counting device can be fixed to it as well.

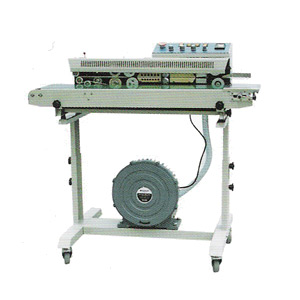

FRM-1010 Series Adopts novelty designed, advanced making craft and ideal mechanism. Model FRMC-1010III has air suction function while sealing and printing.

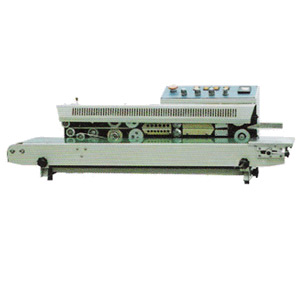

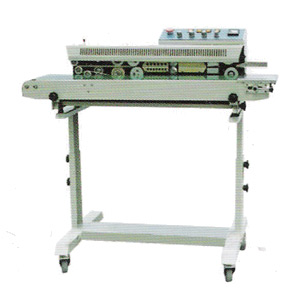

FRM-1010 series has more models including horizontal model (FRM-1010I), vertical model (FRM-1010II), console model (FRM-1010III), and console model with aerating function (FRMC-1010III).
|
|
FRM-1010I |
FRM-1010II |
FRM-1010III |
FRMC-1010III |
| Voltage (V/Hz)
|
AC 220/50 110/60 |
| Motor Power (W)
|
60 |
| Suction Pump Power(W)
|
- |
1200 |
| Sealing Power(W)
|
300×2 |
| Printing Heating Power(w)
|
40×2 |
| Speed (m/min)
|
0-12 (0-16) |
| Sealing Width(mm)
|
8 10 |
| Temperature Range( ℃ )
|
0-300 |
| Printing Type
|
Solid-Ink Roller |
| Distance From Sealing Center to the Conveyor(mm)
|
10-40 |
200-320 |
10-40 |
| Conveyor Size(L × W)(mm)
|
950 × 180 |
| Max. Conveyor Loading for Single Bag(kg)
|
≤ 1 |
| Overall Conveyor Loading(kg)
|
≤ 3 |

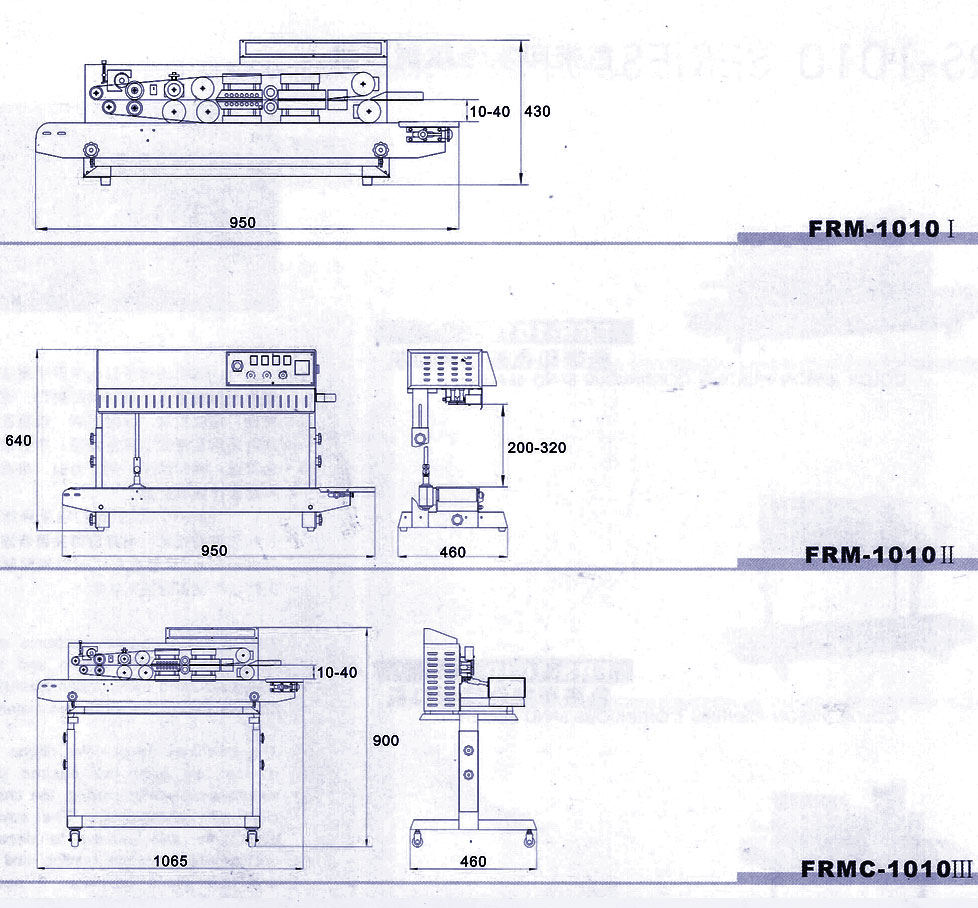

| Dimension(L × W × H)(mm)
|
950×460×430 |
950×460×640 |
1065×550×900 |
| Net Weight(kg)
|
54 |
60 |
54 |
74 |
