FS Series Manual Sealers
Hand Impulse Sealer
 |
 |

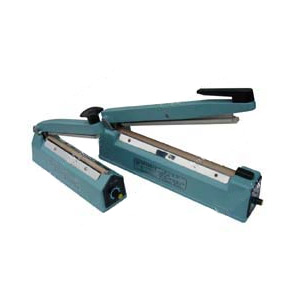

FS-200/FS300 |

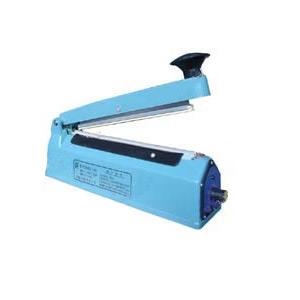

FS-200(ABS) |
 |
|

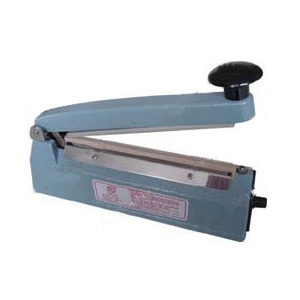

FS-200B |
|
| |
|
| FS series hand impulse sealer is the most convenient and economical sealing equipments for shops, families and factories to use, are suitable for sealing all kinds of poly-ethylene and /of polypropylene film recombined materials and aluminum-plastic film as well, and can be widely used in the industries of food native products, sweets, tea, medicine, hardware etc, Type B can print words along with sealing. |
|
FS-100 |
FS-200 |
FS-300 |
FS-400 |
FS-500 |
Voltage(V/Hz) |
AC 200/50 110/60
|
Impulse power(W) |
180
|
260
|
430
|
600
|
800 |
Sealing Length(mm) |
100
|
200
|
300
|
400
|
500 |
Sealing width (mm) |
2
|
2
|
3
|
3
|
3 |
Max. Seal Thickness(mm) |
0.2
|
0.2
|
0.3
|
0.3
|
0.3 |
Heat Time(s) |
0.2-1.3
|
|
(L×W×H)(mm)
|
230×72×170
|
325×80×225
|
450×85×255
|
540×85×280
|
550×85×280 |
Net Weight(kg) |
1.4
|
2.1
|
3.7
|
4.4
|
7.5 |
| |
FS-200(ABS)
|
FS-300(ABS)
|
FS-200B |
FS-300B
|
Voltage(V/Hz) |
AC 200/50 110/60 |
Impulse power(W) |
260 |
300 |
500 |
650 |
Sealing Length(mm) |
200 |
300 |
200 |
300 |
Sealing width (mm) |
2 |
2 |
8 |
8 |
Max. Seal Thickness(mm) |
0.2 |
0.3 |
0.2 |
0.3 |
Heat Time(s) |
0.2-1.3 |
|
(L×W×H) (mm)
|
325×75×225
|
440×83×255
|
325×75×225 |
440×83×255 |
Net Weight(kg) |
1.4 |
1.8 |
2.8 |
3.7
|
