Products > Automatic Continues Band Sealers > FRS 1010 Series

FRS 1010 Series
Color Ribbon Printing Continuous Band Sealer

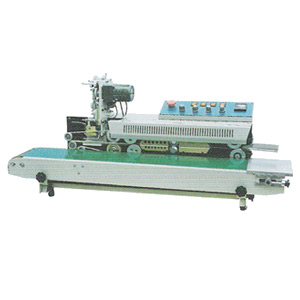

FRS-1010Ⅰ

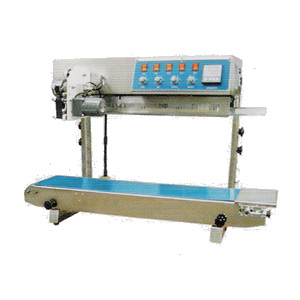

FRS-1010Ⅱ

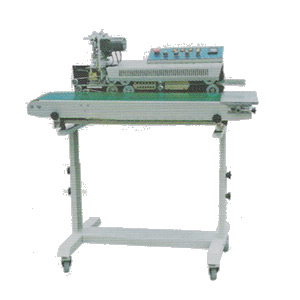

FRS-1010Ⅲ

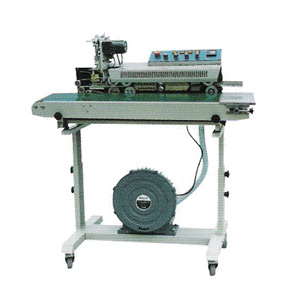

FRSC-1010Ⅲ
The machines adopt electronic constant temperature control system and stepless speed adjusting transmission mechanism. It can seal plastic films of various materials.

The machine adopt Color Ribbon printing device can print the desired designs simultaneously with sealing, the characters clear and conspicuous. The colors are selectable and uneasy to decay and unchangeable, instant printing and instant dry, with strong adhesion. If necessary, counting device can be fixed to it as well.

FRS-1010 Series Adopts novelty designed, advanced making craft and ideal mechanism. Model FRSC-1010III has air suction function while sealing and printing.

FRS-1010 series has more models including horizontal model (FRS-1010I), vertical model (FRS-1010II), console model (FRS-1010III), and console model with aerating function (FRSC-1010III)

FRS-1010I
FRS-1010II
FRS-1010III
FRSC-1010III
Voltage (V/Hz)
AC 220/50 110/60
Motor Power (W)
60
Suction Pump Power(W)
-
1200
Sealing Power(W)
300×2
Printing Heating Power(w)
50×2
Speed (m/min)
0-12 (0-16)
Sealing Width(mm)
8 10
Temperature Range( ℃ )
0-300
Printing Type
Color Ribbon
Distance From sealing Center to the Conveyor(mm)
10-40
200-320
10-40
Conveyor Size(L × W)(mm)
1065 × 180
Max. Conveyor Loading for single bag(kg)
≤ 1
Overall Conveyor Loading(kg)
≤ 3
Dimension(L × W × H)(mm)
1065×460×500
1065×540×640
1065×540×1325
Net Weight(kg)
58
64
67
76
