Products > Automatic Continues Band Sealers > FRM-980A series

FRM-980A Series
Solid-Ink Coding Continuous Band Sealer

FRM-980AⅠ
FRM-980AⅡ
FRM-980AⅢ

The machine is suitable for small bags packaging and adopts electronic constant temperature control system and stepless speed adjusting transmission mechanism. It can seal plastic films of various materials. The machine adopt solid-ink coding device can print the desired designs simultaneously with sealing, the characters clear and conspicuous.

The colors are selectable and uneasy to decay and unchangeable, instant printing and instant dry, with strong adhesion. It can print R type two lines of No.4 characters (PT18) of three lines of No.5 characters (PT10.5). If necessary, counting device can be fixed to it as well. FRM-980 series has more models including horizontal model (FRM-980I), vertical model (FRM-980II) and console model (FRM-980III).




FRM-980AI
FRM-980AII
FRM-980AIII

Voltage (V/Hz)

AC 220/50 110/60

Motor Power (W)

               50

Sealing Power(W)

300×2

Printing Heating Power(w)

40×2

Speed (m/min)

0-12 (0-16)

Sealing Width(mm)

8 10

Temperature Range( ℃ )

0-300

Printing Type

Solid Ink Roller

Distance From Sealing Center to the Conveyor(mm)

10-40
200-320
10-40

Conveyor Size(L × W)(mm)

930×153

Max. Conveyor Loading for Single Bag(kg)

≤1

Overall Conveyor Loading(kg)

≤3

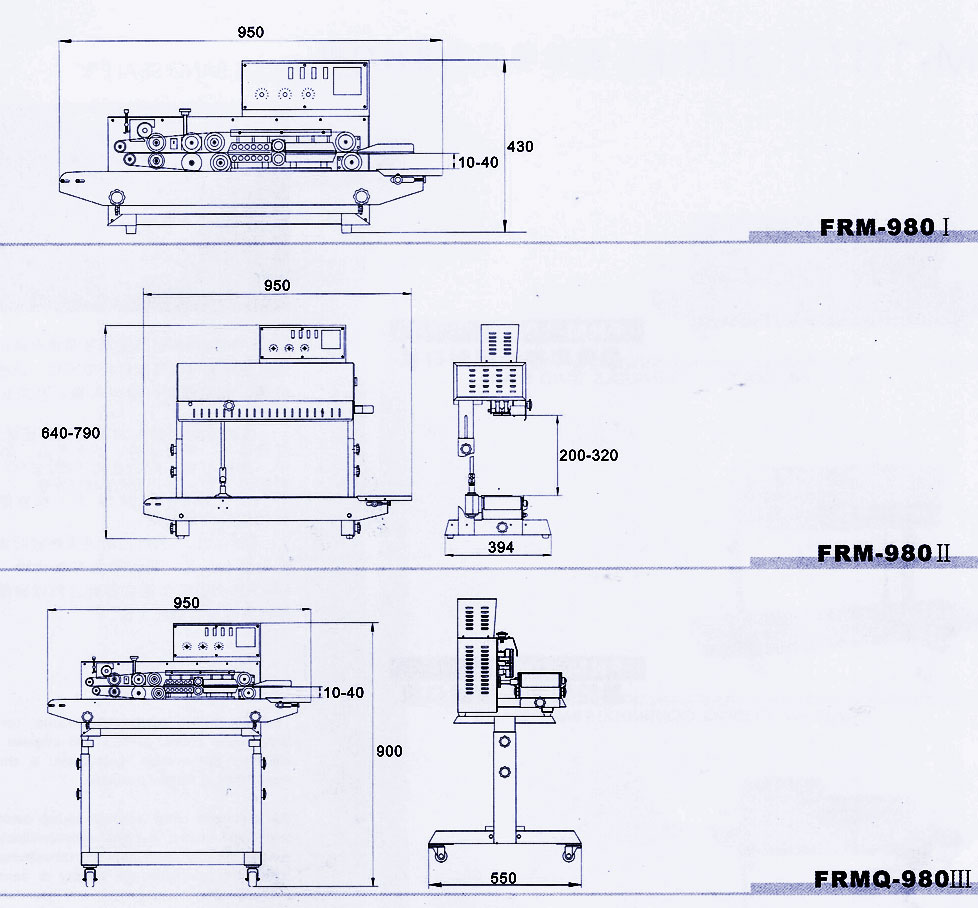

Dimension(L × W × H)(mm)

950×400×430
950×400×640
1050×560×900

Net Weight(kg)

45
50
     52
