FRBM-810 Series
Solid-Ink Coding Continuous Band Sealer
|
|
| FRBM-810Ⅰ |
FRBM-810Ⅱ |
|
|
| FRBM-810Ⅲ |
|
|
|
The machine is suitable for small bags packaging and adopts electronic constant temperature control system and stepless speed adjusting transmission mechanism. It can seal plastic films of various materials.
The machine adopt solid-ink coding device can print the desired designs simultaneously with sealing, the characters clear and conspicuous.
The colors are selectable and uneasy to decay and unchangeable, instant printing and instant dry, with strong adhesion. It can print R type two lines of No.4 characters (PT18) of three lines of No.5 characters (PT10.5). If necessary, counting device can be fixed to it as well.

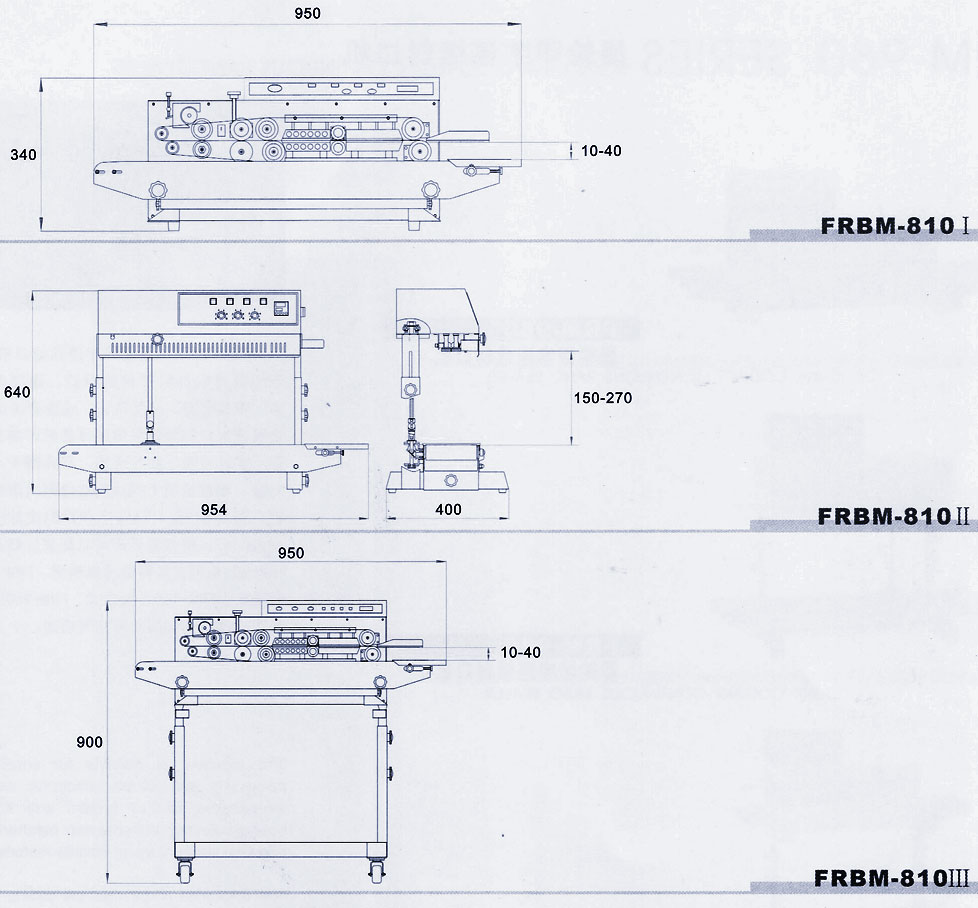

FRBM-810 series has three models of horizontal model (FRBM-810I), vertical model (FRBM-810II) and console model (FRBM-810III).
|
| |
FRBM-810I |
FRBM-810II |
FRBM-810III |
| Voltage (V/Hz) |
AC 220/50 110/60 |
| Motor Power (W) |
50 |
| Sealing Power(W) |
300×2 |
| Printing Heating Power(w) |
40×2 |
| Speed (m/min) |
0-12 (0-16) |
| Sealing Width(mm) |
8 10 |
| Temperature Range( ℃ ) |
0-300 |
| Printing Type |
Solid-Ink Roller |
| Distance From sealing Center to the Conveyor(mm) |
10-40 |
200-320 |
10-40 |
| Conveyor Size(L × W)(mm) |
950×180 |
| Max. Conveyor Loading for single bag(kg) |
≤1 |
| Overall Conveyor Loading(kg) |
≤3 |
| Dimension(L × W × H)(mm) |
950×390×345 |
950×420×520 |
950×550×825 |
| Net Weight(kg) |
45 |
57 |
55 |
