Products |
|
|
|
|
|
|
| |
 |
|
|
|
|
Products > Automatic Continues Band Sealers > FR 1120AL Series
FR 1120AL Series continuous band sealer
Heavy-Duty Continuous Band Sealer
|
|

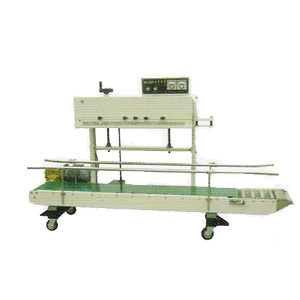

FRM-1120AL/SM |

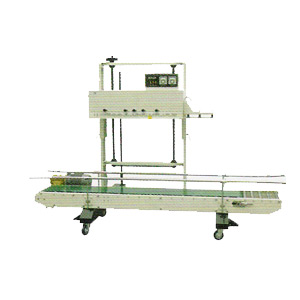

FR-1120AL/SL |
|
|

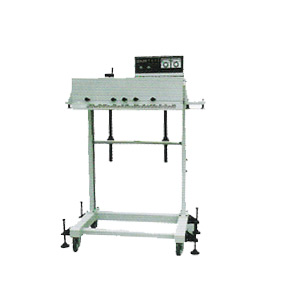

| FR-1120AL/ST |
|
The machine is specially designed for thicker bags, which is suitable for sealing weight of under 5kgs, 10kgs & 20kgs respectively.
FR-1120AL/ST match to operate with production line.
|
|
FR-1120AL/SM |
FR-1120AL/SL |
FR-1120AL/ST |
| Voltage (V/Hz)
|
AC 220/50 110/60 |
| Motor Power (W)
|
370 |
750 |
100 |
| Sealing Power(W)
|
300 × 4 |
| Speed (m/min)
|
8 |
0-10 |
| Sealing Width(mm)
|
8 10 |
| Temperature Range( ℃ )
|
0-300 |
| Distance From Sealing Center to the Conveyor(mm)
|
330-530 |
450-900 |
-- |
| Height From Sealing center to floor (mm)
|
1300 |
| Conveyor Size(L×W)(mm)
|
1900×300 |
2400×350 |
-- |
| Max. Conveyor Loading for Single Bag(kg)
|
≤10 |
≤20 |
-- |
| Overall Conveyor Loading(kg)
|
≤30 |
≤60 |
-- |

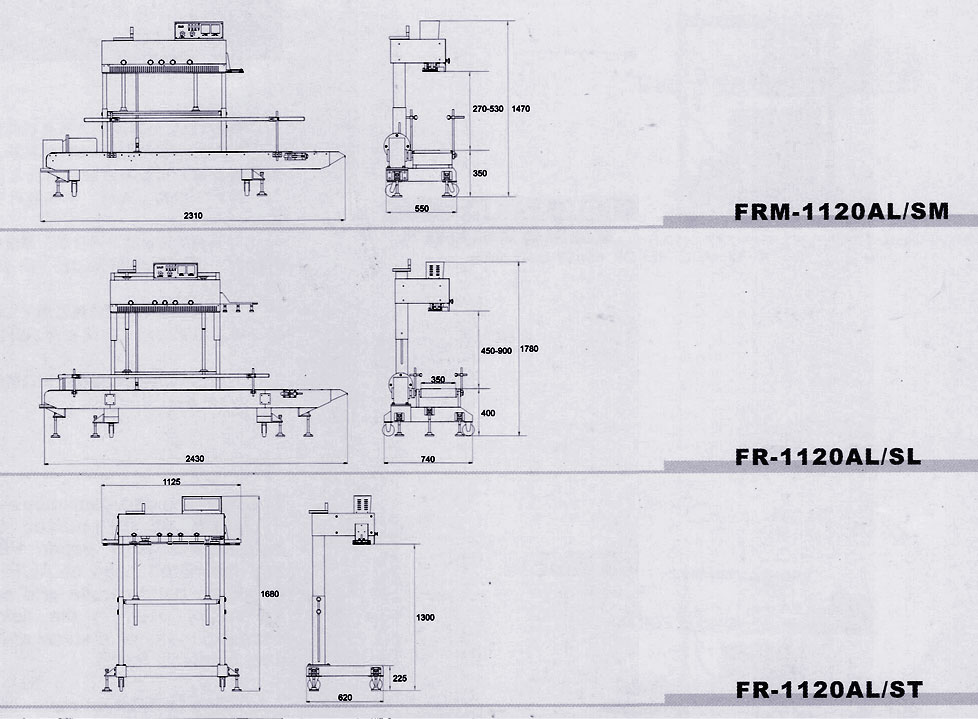

| Dimension(L×W×H)(mm)
|
1950×550× 1100 |
2430×740×1450 |
1125×620×1680 |
| Net Weight(kg)
|
150 |
250 |
80 |
